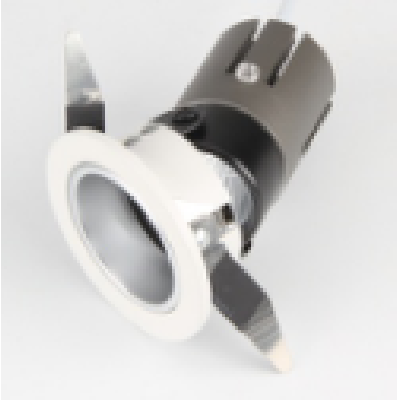

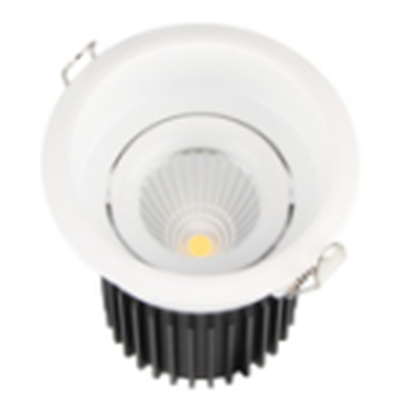

LED down light BCTD293
2019-01-17 827
Place of Origin | Zhongshan | Model | BCTD293 | Specifications | ￠115*H130mm |
| brand | Baichang/Guangmei/Guangmeixin | input voltage | AC85-265V | Output current | 280MA |
| power | 25W | light source | COB | Color temperature | 2800-6500k |
Protection level | IP54 | Luminous angle | 60° | Application scope | Home places, corridors, leisure and entertainment places, exhibition halls, corridors, Hotel lobbies, commercial lighting, etc |
Light distribution curve | IES | New time | 2018年 |
Place of Origin | Zhongshan | Model | BCTD294 | Specifications | ￠68*H98mm |
| brand | Baichang/Guangmei/Guangmeixin | input voltage | AC85-265V | Output current | 280MA |
| power | 7W | light source | COB | Color temperature | 2800-6500k |
Protection level | IP54 | Luminous angle | 15° | Application scope | Home places, corridors, leisure and entertainment places, exhibition halls, corridors, Hotel lobbies, commercial lighting, etc |
Light distribution curve | IES | New time | 2018年 |
Place of Origin | Zhongshan | Model | BCTD295 | Specifications | ￠90*H110mm |
| brand | Baichang/Guangmei/Guangmeixin | input voltage | AC85-265V | Output current | 280MA |
| power | 15W | light source | COB | Color temperature | 2800-6500k |
Protection level | IP54 | Luminous angle | 24° | Application scope | Home places, corridors, leisure and entertainment places, exhibition halls, corridors, Hotel lobbies, commercial lighting, etc |
Light distribution curve | IES | New time | 2018年 |
Place of Origin | Zhongshan | Model | BCTD296 | Specifications | ￠110*H125mm |
| brand | Baichang/Guangmei/Guangmeixin | input voltage | AC85-265V | Output current | 280MA |
| power | 25W | light source | COB | Color temperature | 2800-6500k |
Protection level | IP54 | Luminous angle | 38° | Application scope | Home places, corridors, leisure and entertainment places, exhibition halls, corridors, Hotel lobbies, commercial lighting, etc |
Light distribution curve | IES | New time | 2018年 |
